SPECIFICATIONS





Folded Length (mm): 580

Head Load Capacity: 8kg

Material: Carbon Fiber

Material(s): Carbon Fiber

Max Extened Length (mm): 1970

Model Number: 4463

Net Weight: 5.9kg

Package: Yes

SMALLRIG Model: AD-120

Tripod Load Capacity: 15kg

Type: Professional Tripod

Use: Video Camera,Action Cameras,360° Video Camera,Point & Shoot Cameras,Special Camera,DSLRs,Smartphones,Mirrorless System Camera,Digital Cine Cameras

Weight (g): 5900

Working Height: 58.0 - 197.0cm

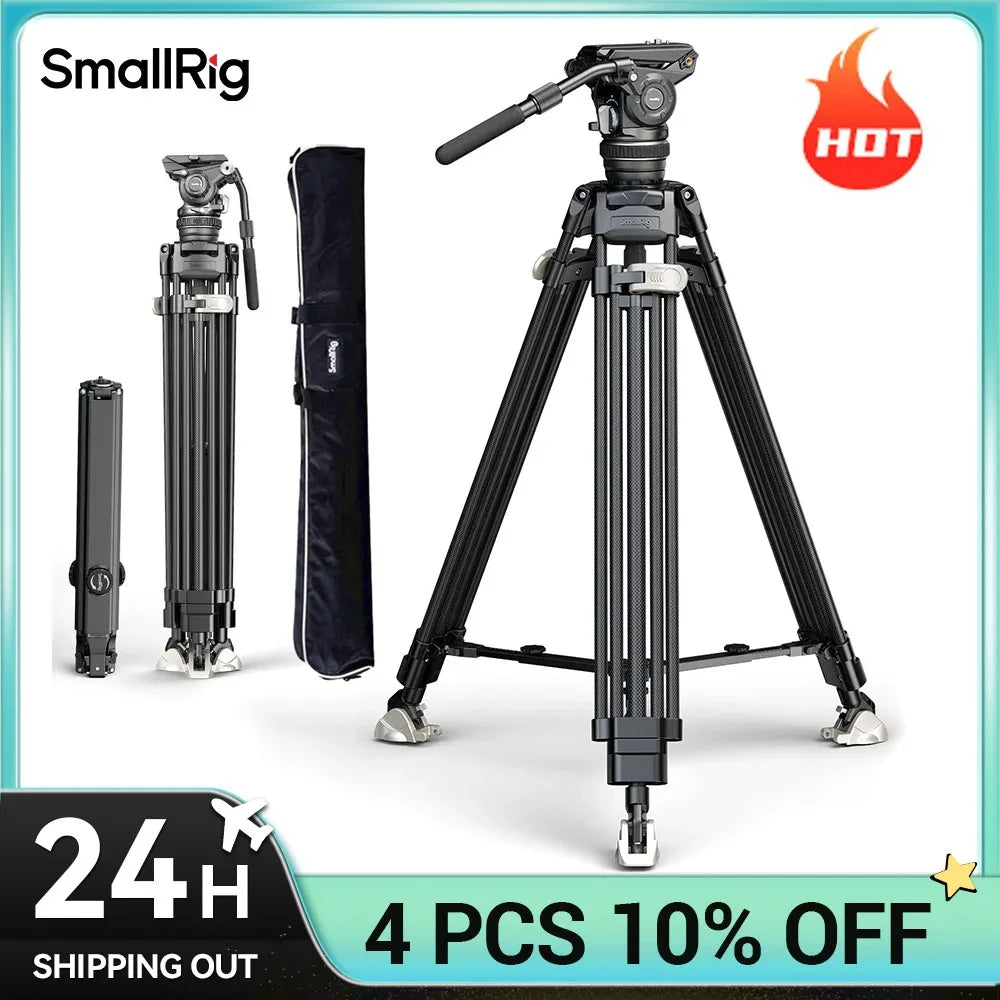

SmallRig Heavy-Duty Carbon Fiber Tripod Kit AD-120 4463





Key Features

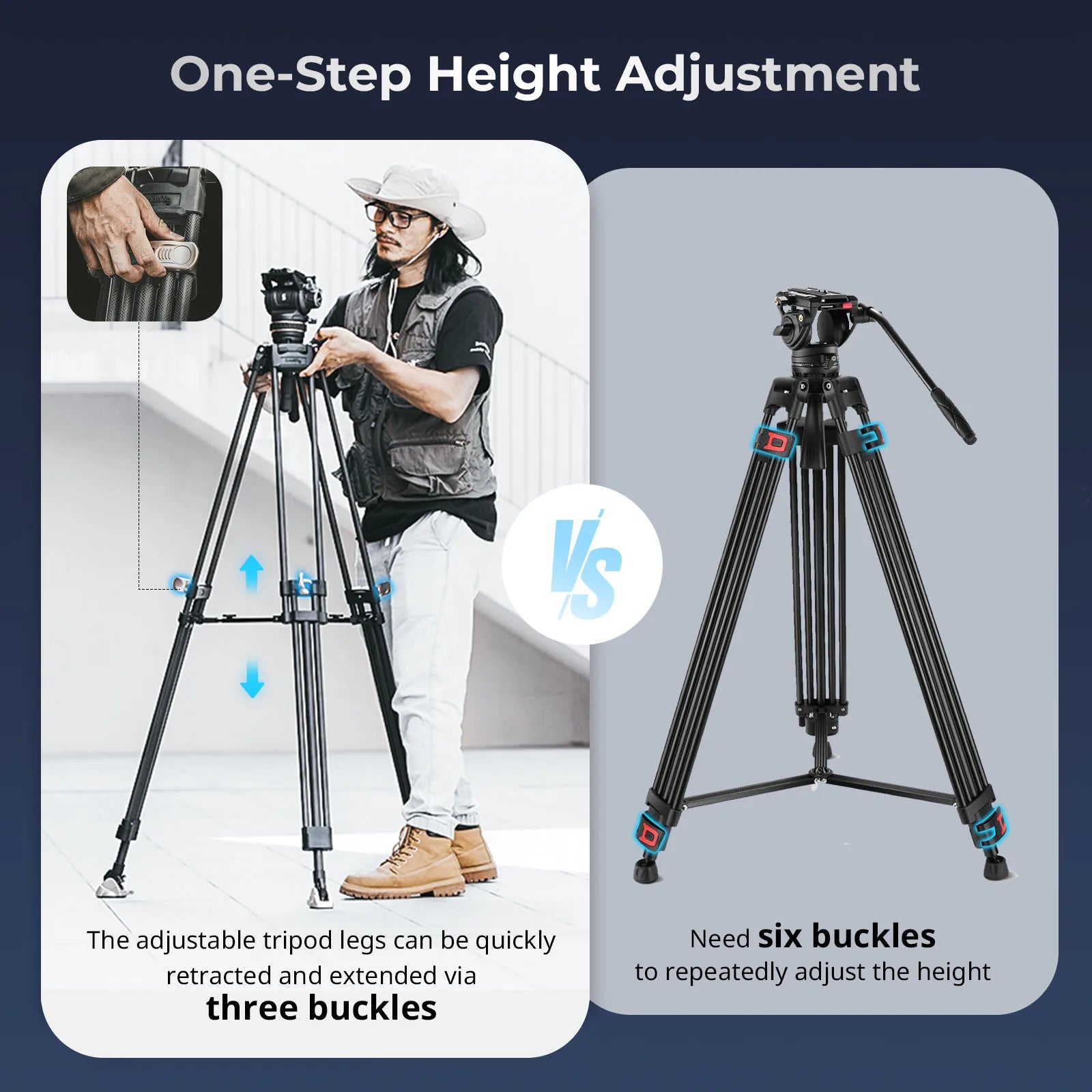

1. One-key locking, quick height adjustment

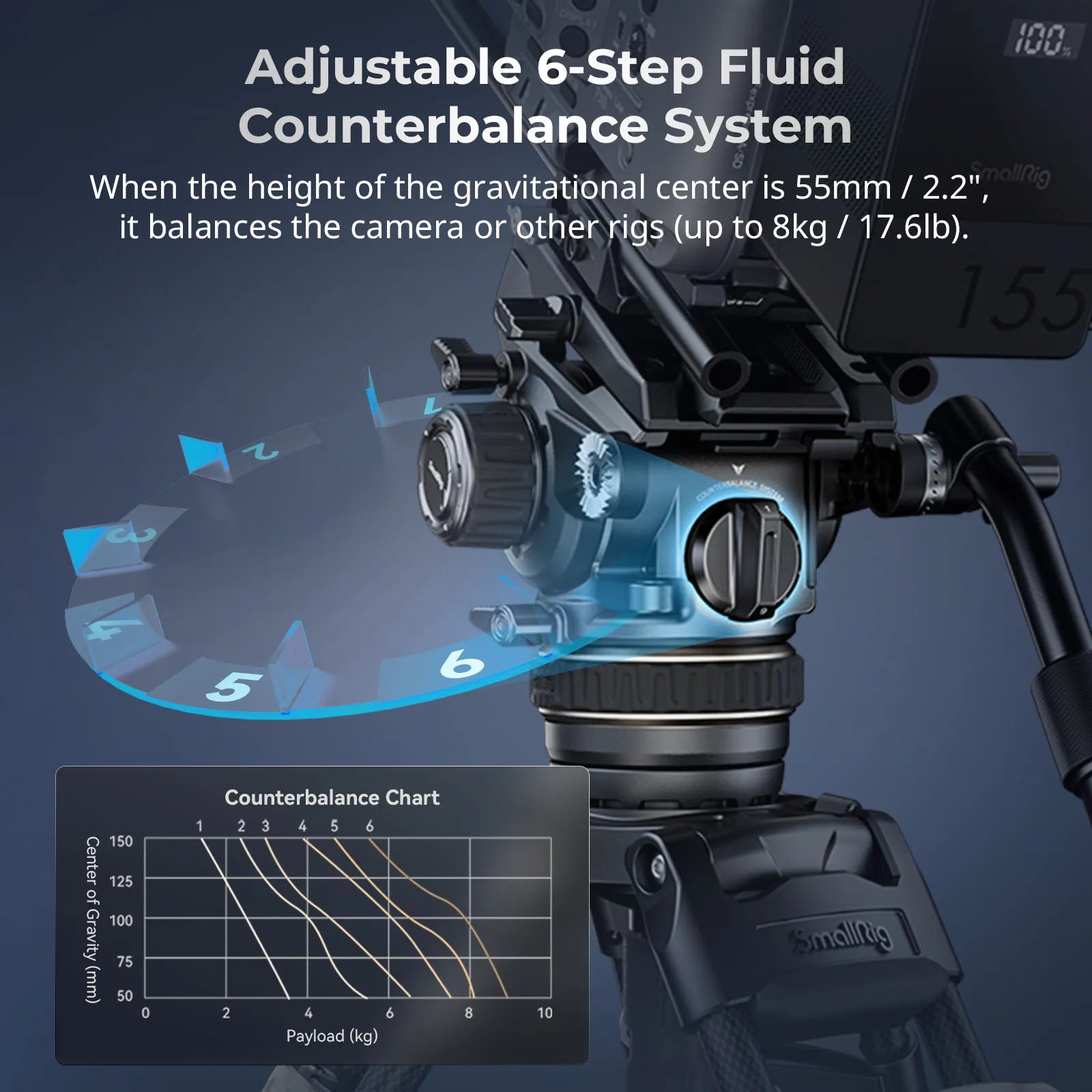

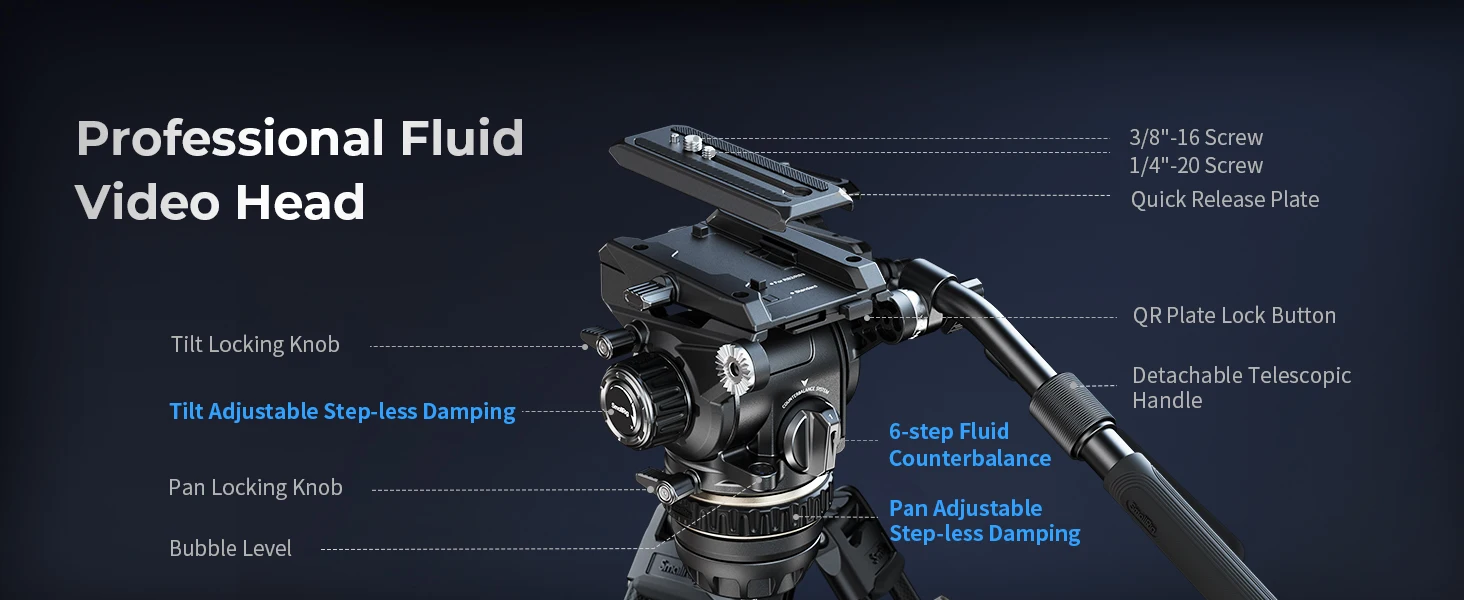

2. Adjustable 6-step fluid counterbalance system

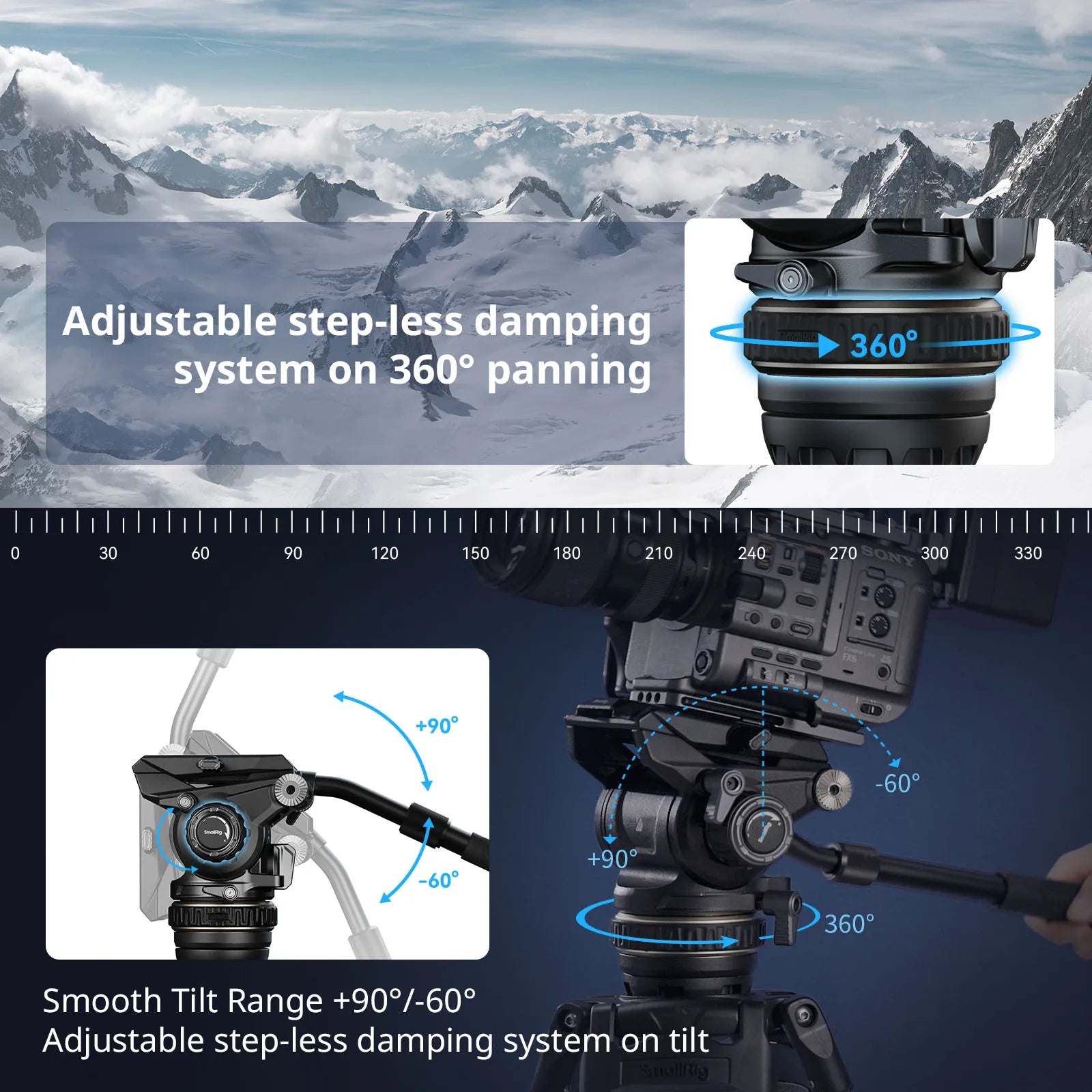

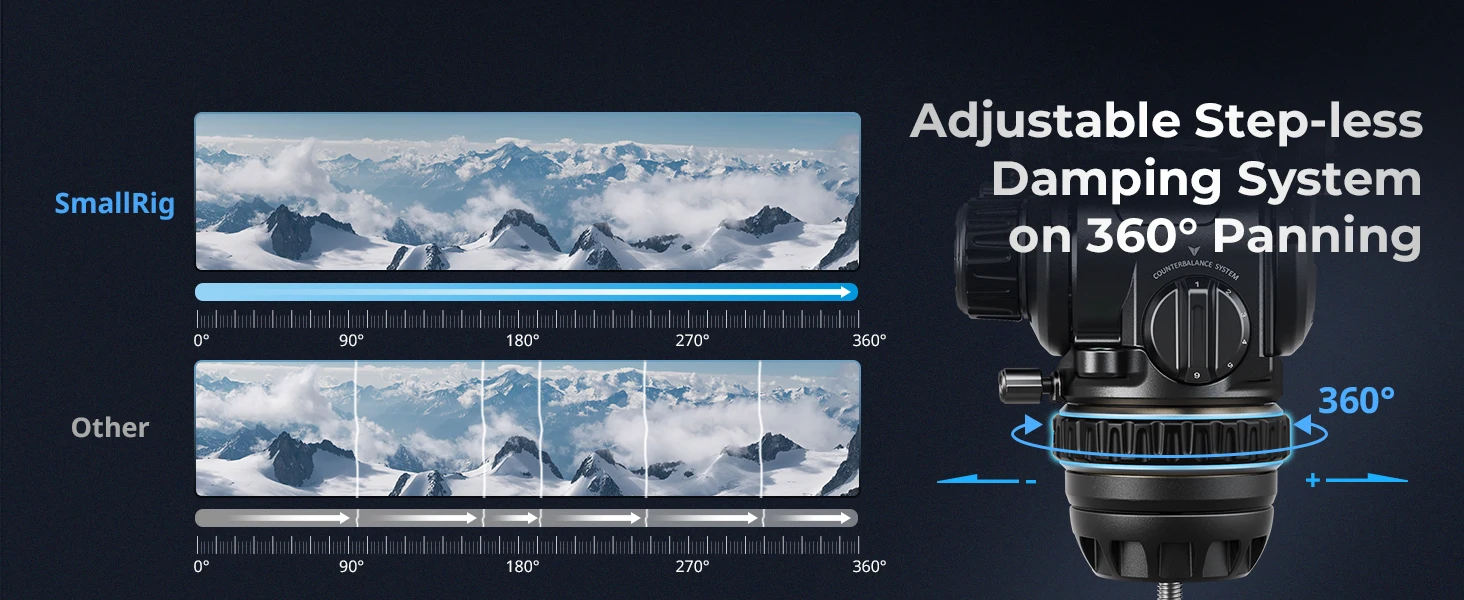

3. Adjustable step-less damping system on PAN & TILT

4. Easy switch between Manfrotto and DJI RS quick release plates

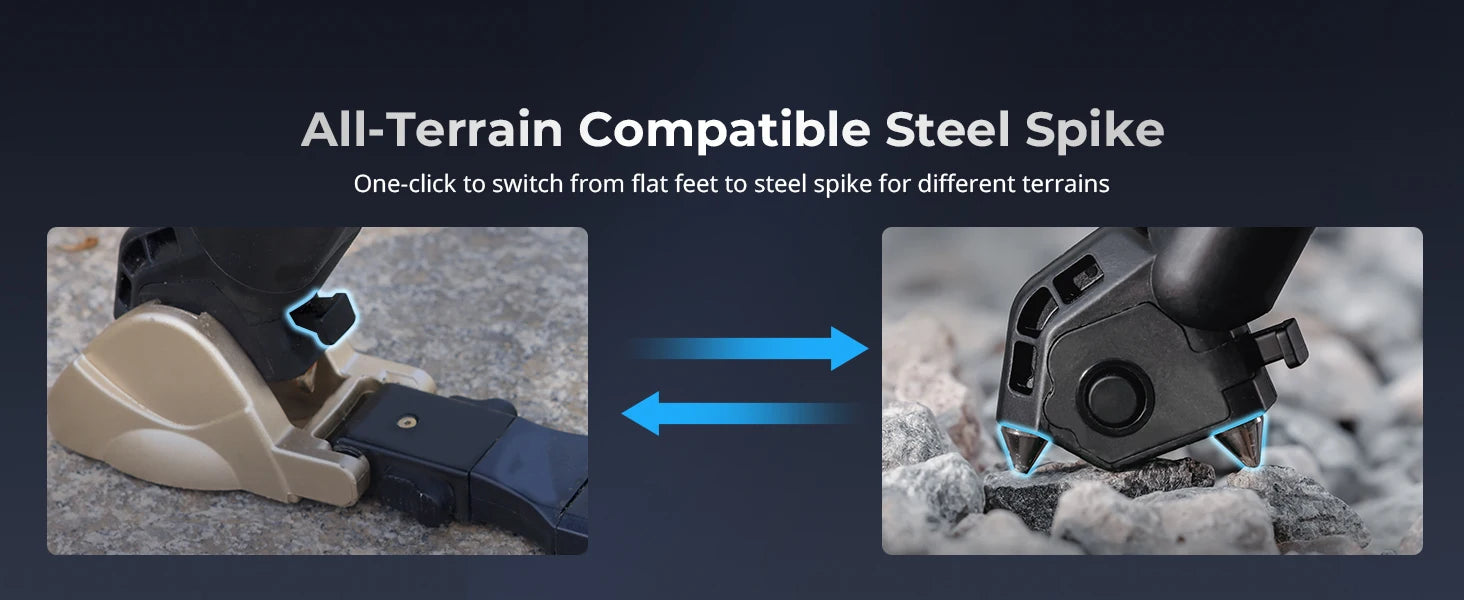

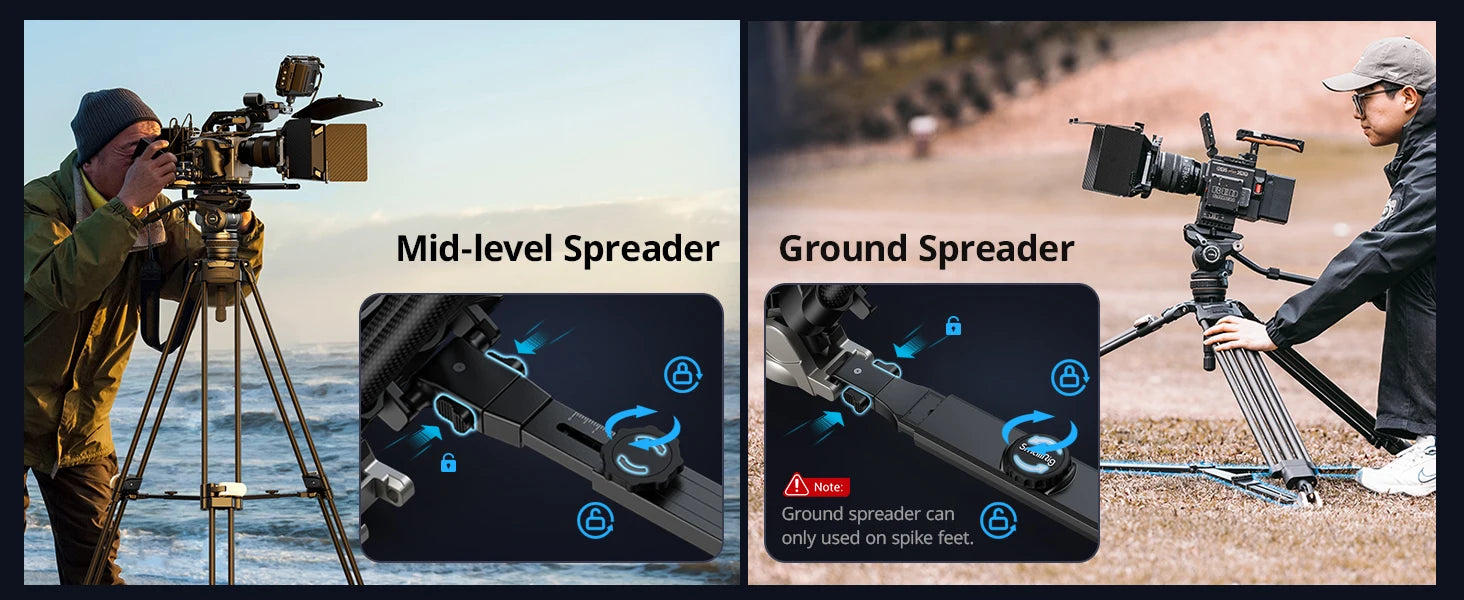

5. Interchangeable ground and mid-level spreaders, flat and spike feet

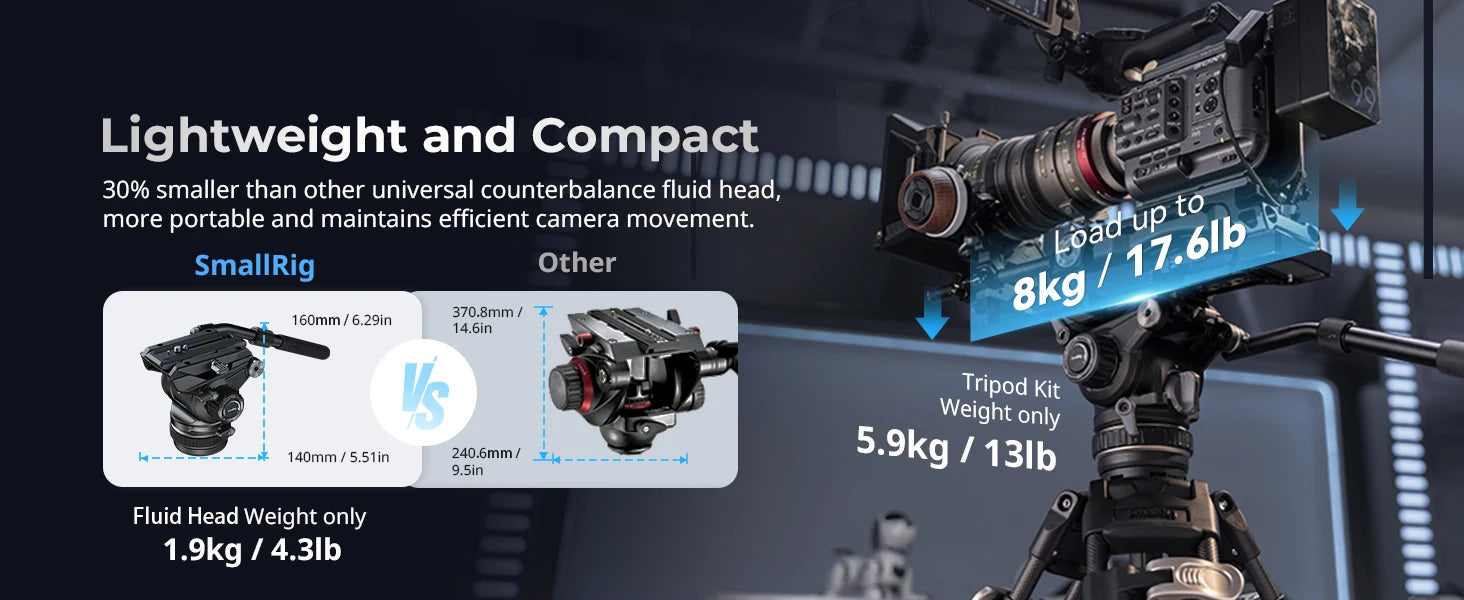

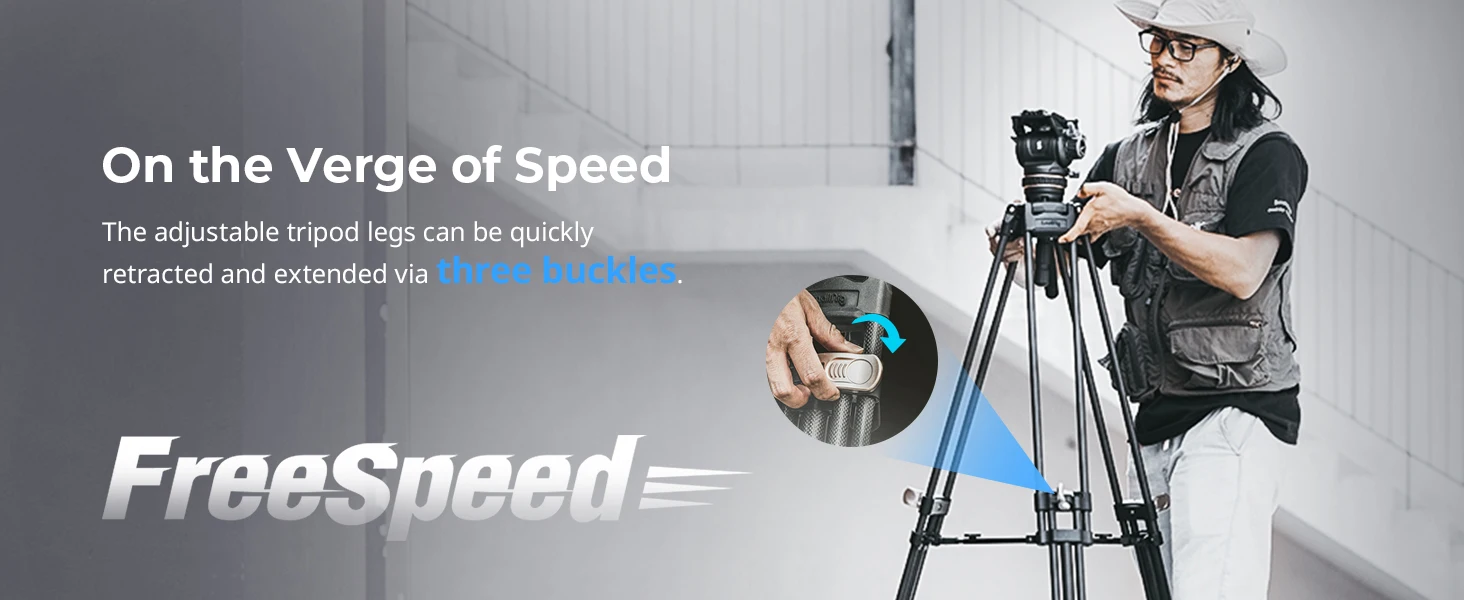

SmallRig Heavy-Duty Carbon Fiber Tripod Kit AD-120 4463 is a professional video tripod kit to facilitate video shooting. The tripod has adjustable legs, which can be quickly retracted and extended via flip locks. Operating Altitude ranges from 58cm (22.9in) to 197cm (77.6in), and the folded length is 99cm （38.9in). The fluid head features an adjustable 6-step counterbalance system. When the height of the gravitational center is 55mm / 2.2", the 6-step counterbalance system balances the camera or other rigs (up to 8kg / 17.6lb) and accurately controls the camera tilt. The adjustable step-less damping system enables swivel and tilt adjustment and provides smooth pan and tilt camera movements. The fluid head 4464 adopts a new Touch-and-Go quick release mount plate design which does not require alignment and is more efficient than traditional slide-in plates. It is DJI RS Series quick release plate and Manfrotto quick release plate compatible to realize a free switch between stabilizer shooting and tripod shooting. The user-friendly detachable telescopic handle allows rotation and attaching it to both left and right sides, making it suitable for any grip.

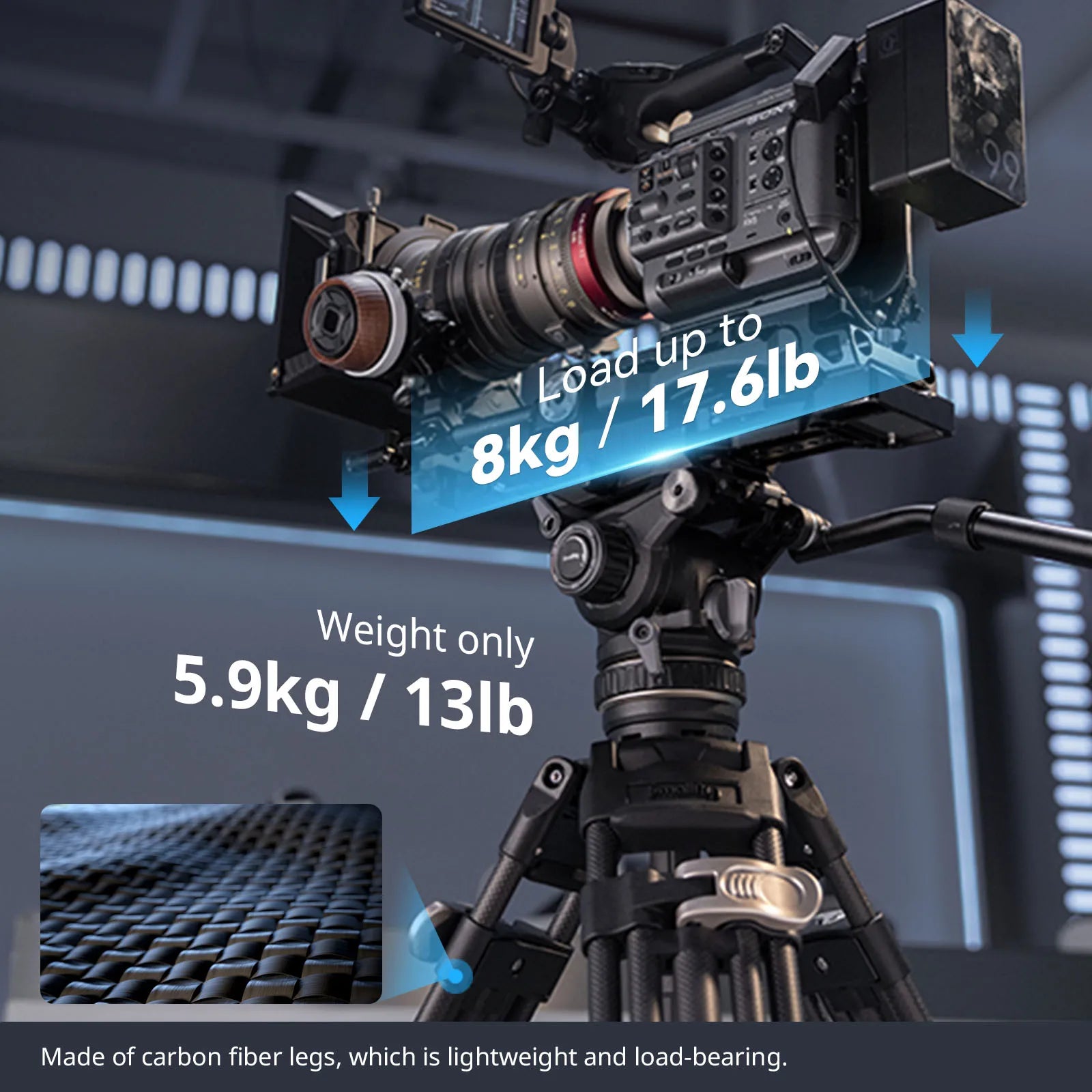

Lightweight but sturdy carbon fiber tripod legs have interchangeable flat feet and spikes, ground and mid-level spreaders, and a bubble level. The package also includes a customized carrying bag for storage and protection of the product.



Designer: Ferlin



Note:

1.Not sand dust resistant

2. Max payload: 8kg / 17.6lb

3. Please lock the mid-level spreader and ground spreader before using this tripod



Compatibility

Manfrotto 501PL Quick Release Plate

75mm / 2.9in Bowl Adapter

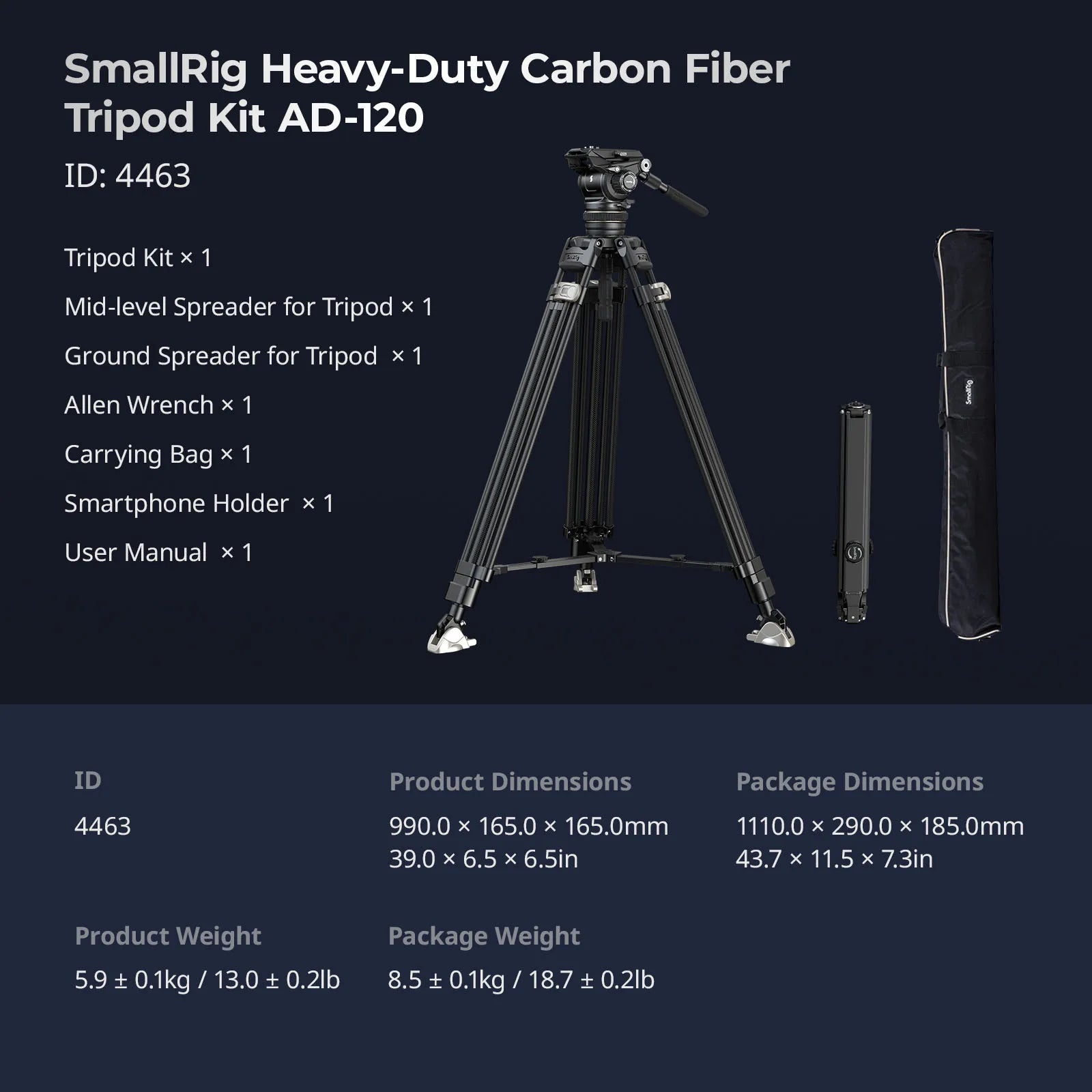

In the Box

Tripod Kit x 1

Mid-level Spreader for Tripod x 1

Ground Spreader for Tripod x 1

Allen Wrench x 1

Carrying Bag x 1

Smartphone Holder x 1

User Manual x 1

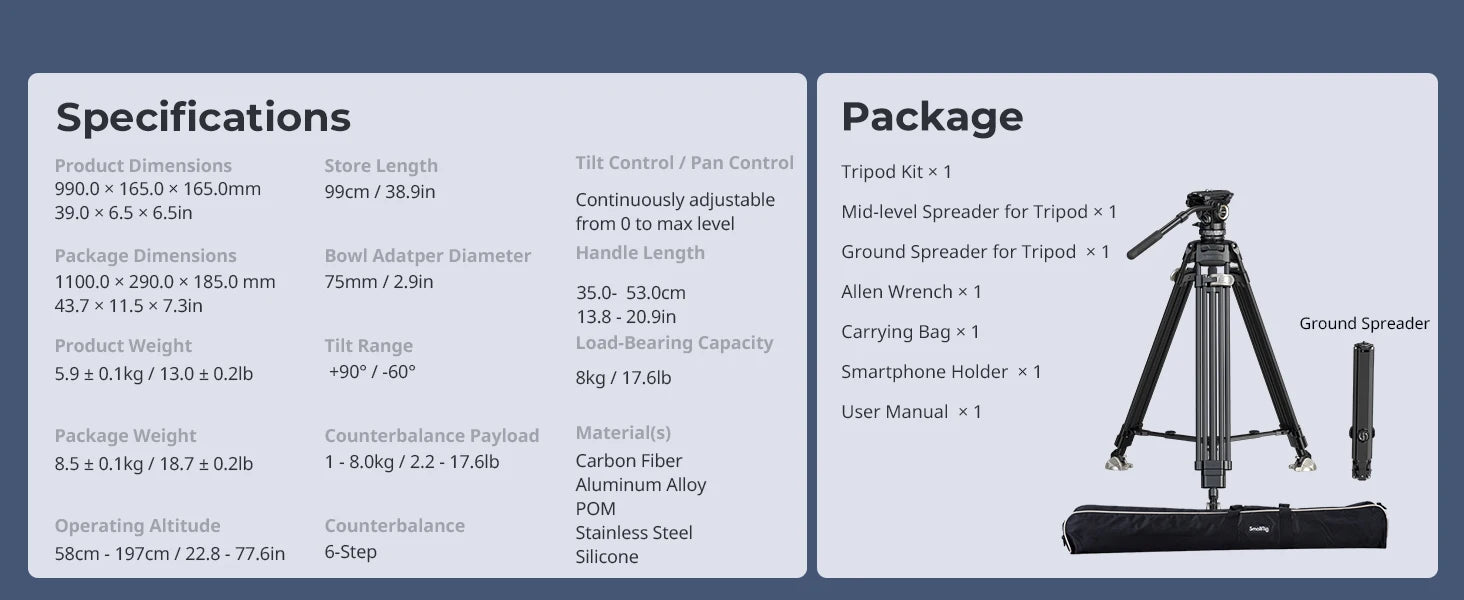

Specifications

Product Dimensions: 990.0 x 165.0 x 165.0mm / 39.0 x 6.5 x 6.5in

Package Dimensions: 1100.0 x 290.0 x 185.0 mm / 43.7 x 11.5 x 7.3in

Product Weight: 5.9 ± 0.1kg/ 13.0 ± 0.2lb

Package Weight: 8.5 ± 0.1kg/ 18.7 ± 0.2lb

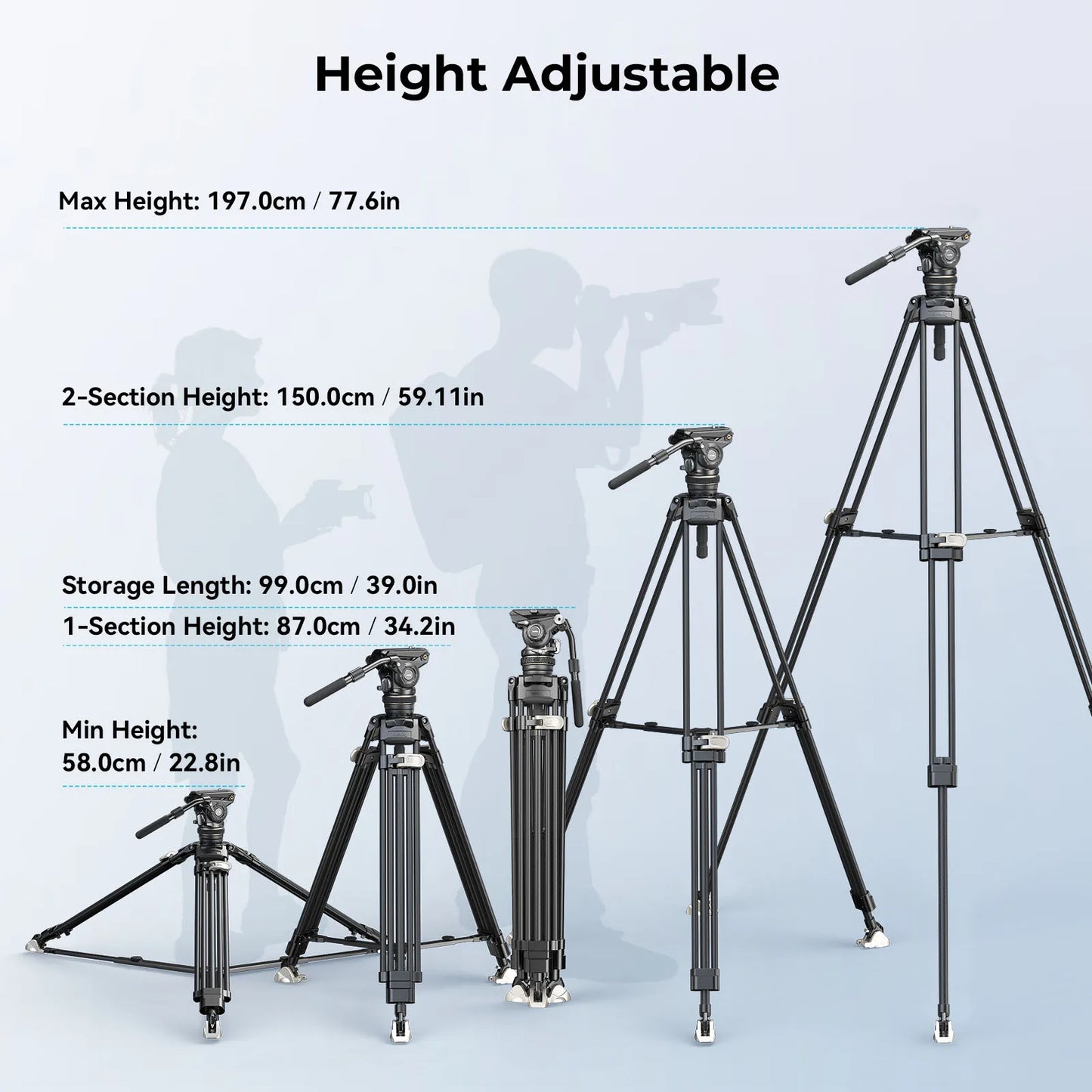

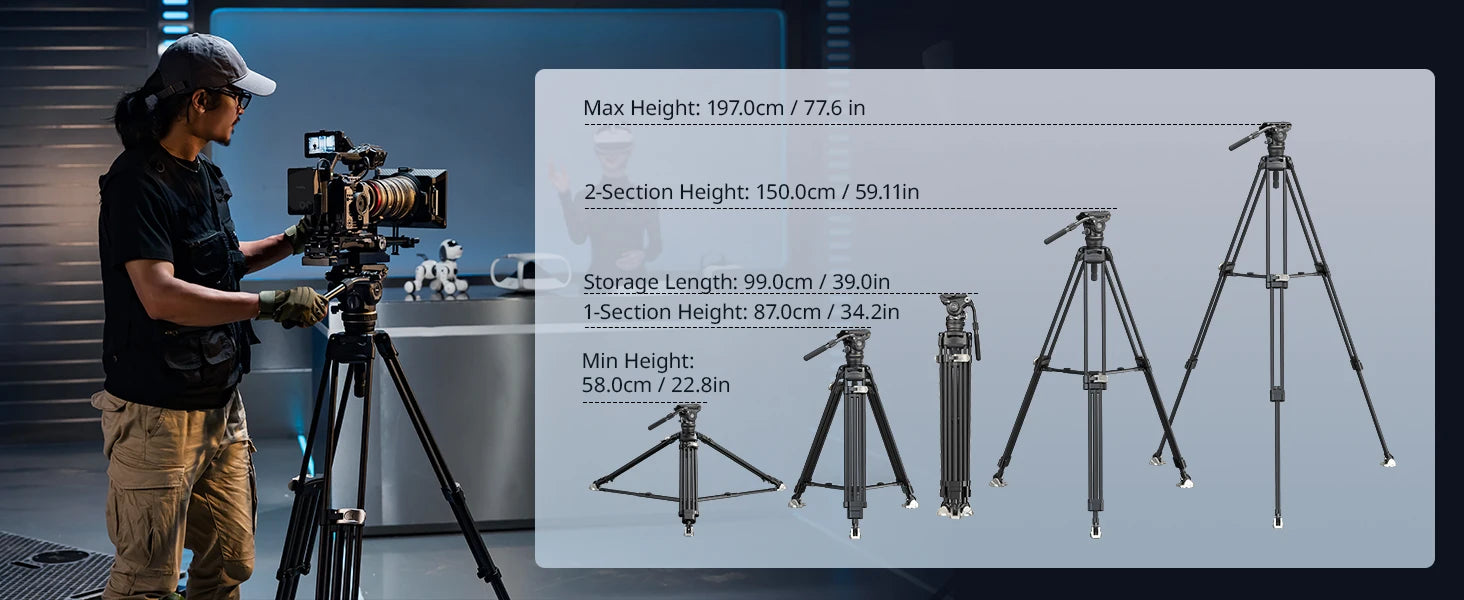

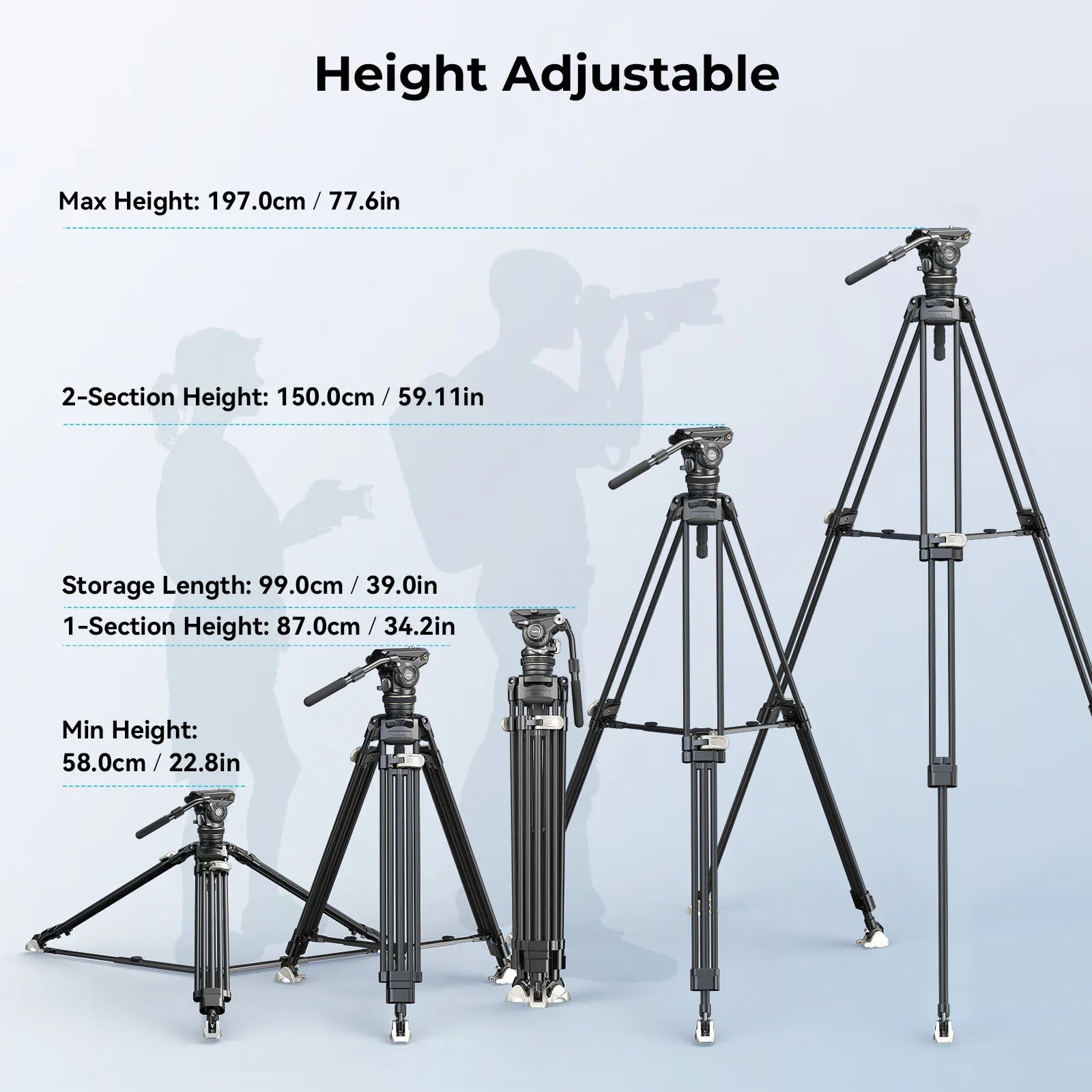

Operating Altitude: 58cm - 197cm / 22.8 - 77.6in

Maximum Height: 197cm / 77.6in

Minimum Height: 58cm / 22.8in

Closed Length: 99cm / 38.9in

Bowl Adatper Diameter: 75mm / 2.9in

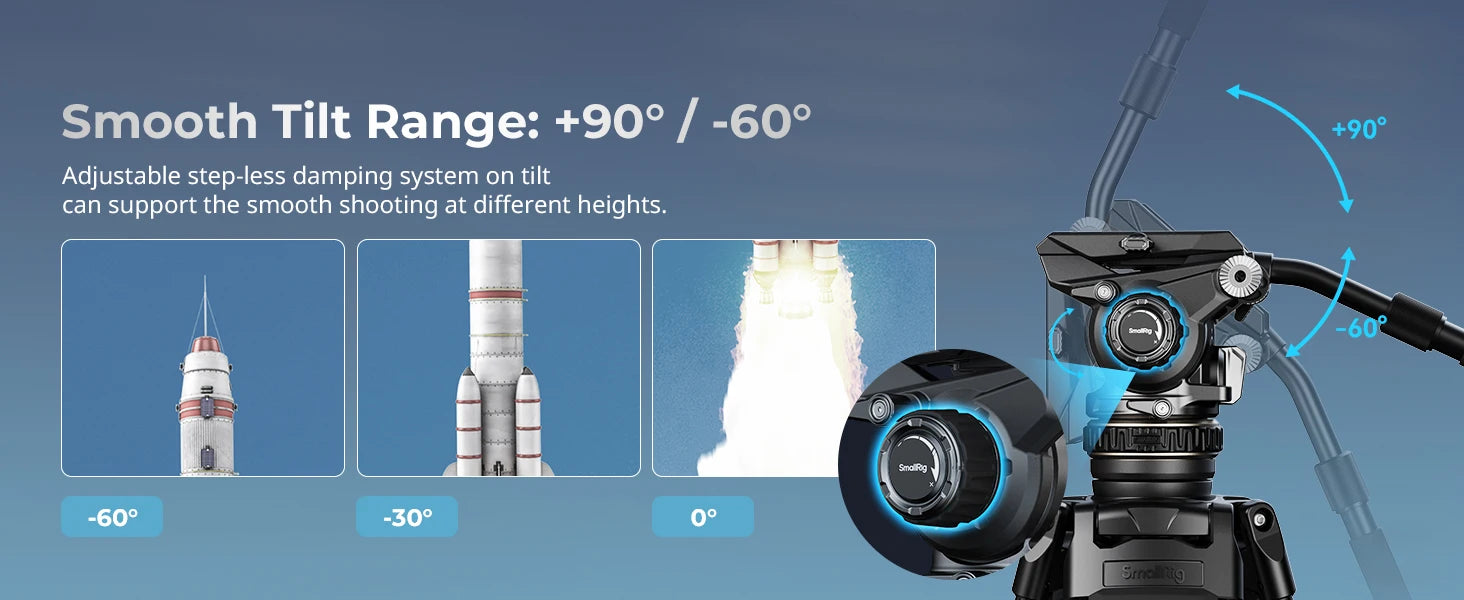

Tilt Range: +90°/-60°

Counterbalance Payload: 1 - 8.0kg / 2.2 - 17.6lb

Counterbalance: 6-Step

Tilt Control: Continuously adjustable from 0 to max level

Pan Control: Continuously adjustable from 0 to max level

Load-Bearing Capacity: 8kg / 17.6lb

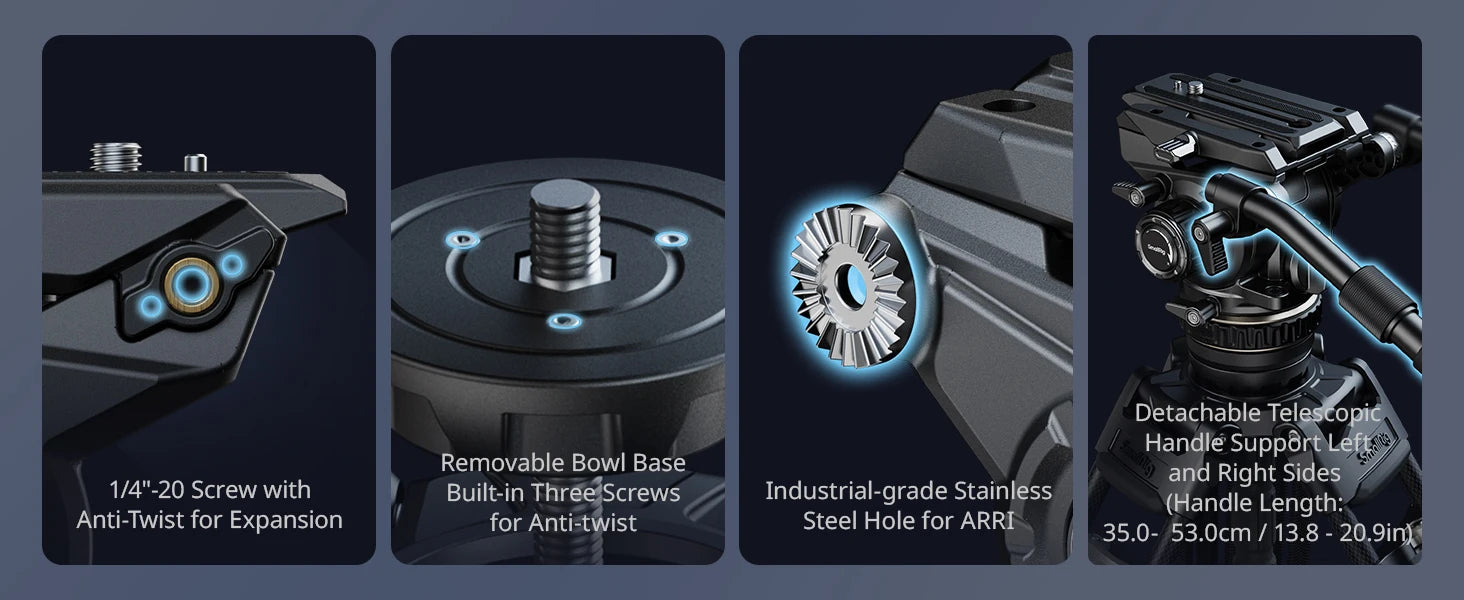

Handle Length: 35.0- 53.0cm / 13.8 - 20.9in

Material(s): Carbon Fiber, Aluminum Alloy, POM, Stainless Steel, Silicone
