SPECIFICATIONS

Alarm Type: Email Photo,Local Alarm

Audio: 1 Input / 1 Output

Audio Input: 1 Channel

Audio Output: 1CH RCA

Backup Type: Hard Drive

Capability: Analog, AHD,TVI and CVI camera

Certification: CE

Compression Format: H.265

DVR Power Supply: DC12V

DVR Video Input / Output: 8 Channel / 1 Channel

HDD Capacity: None,2TB,1TB

Hard Drive: Support 1 SATA port, up to 6TB(2TB HDD Include)

Hard Drive Size: 3.5''

Hard drive Interface Type: SATA

Model Number: 1AR-08VNA

Multiple recording modes: Manual, Alarm, Motion Detection, Timing

Network Interface: RJ45 10/100M

Network Protocol: DHCP

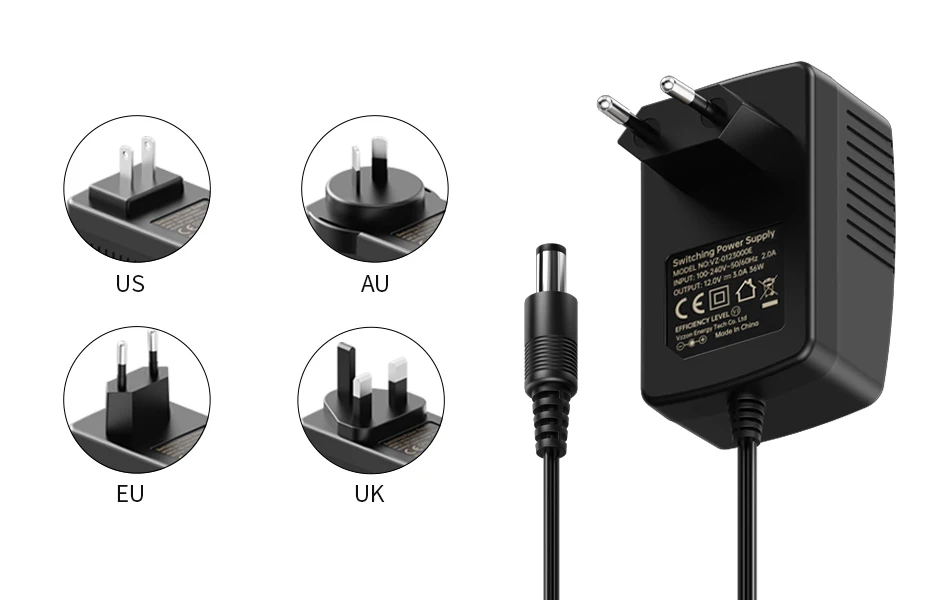

Power: EU/AU/UK/US Optional

Remote View: Android, iPhone, iPad, Internet Explorer

Smart home platform: None

Supported Mobile Systems: iPhone OS,Android

Supported Operating Systems: Microsoft Windows 7,Microsoft Windows XP,Mac OS

Technology: analog,AHD,HDCVI,HDTVI

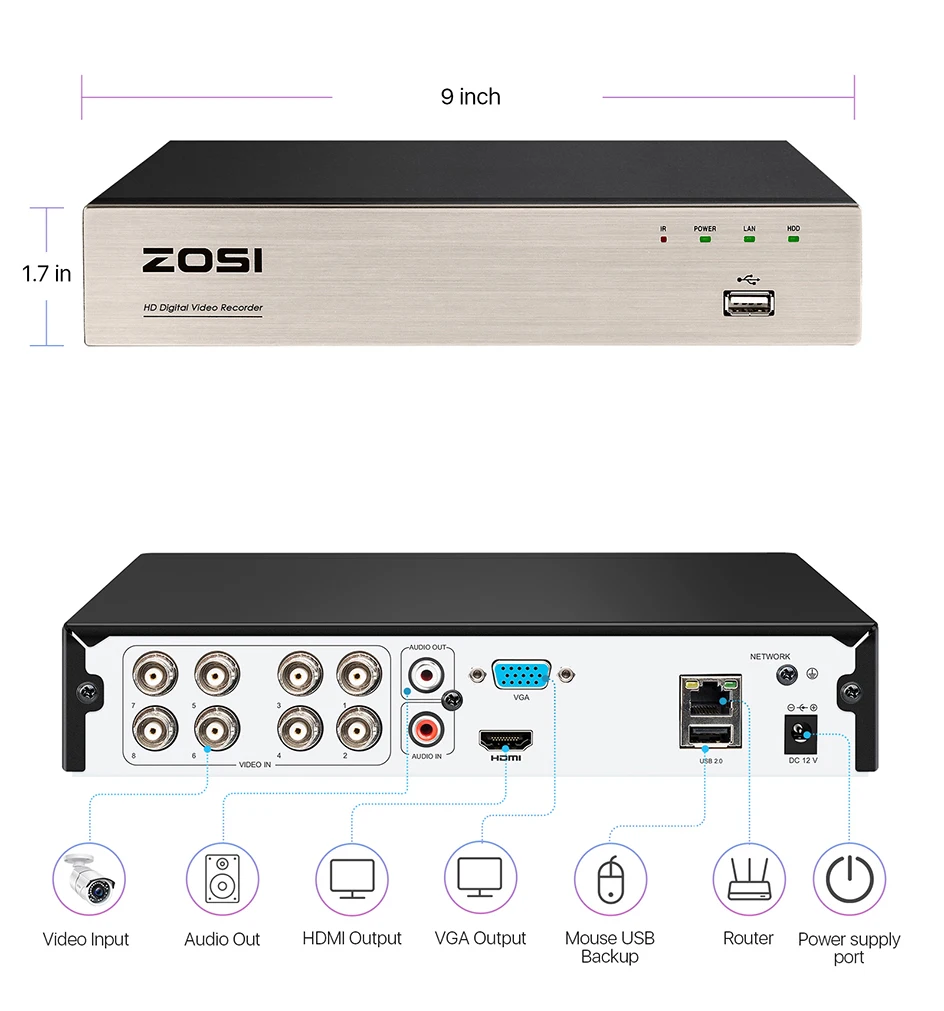

Video: 1HDMI,1VGA, 1TV Spot BNC

Video Adjustment: Auto White Balance

Video Compression: H.265 High profile

Video Input Interface: BNC (1.0 Vp-p, 75Ω)

Video Resolution: 1080p

Video Standard: NTSC/PAL

Wireless Security: wep

DVR Specification

Compression Tech: H.265+
System Resources: Pentaplex function: live, recording, playback, backup & remote access.
Recording Mode: Manual>Motion Detection>Continuous.
Search Mode: Time/Date/Motion Detection & exact search.
Video Outputs: HDMI / VGA / CVBS / AHD / CVI.
Video Inputs: 8 channel
Audio Inputs/Outputs: 1CH/1CH.
PTZ Control: Support.
Hard Disk: 1 SATA ports(Max 6TB).
USB back up: Support.

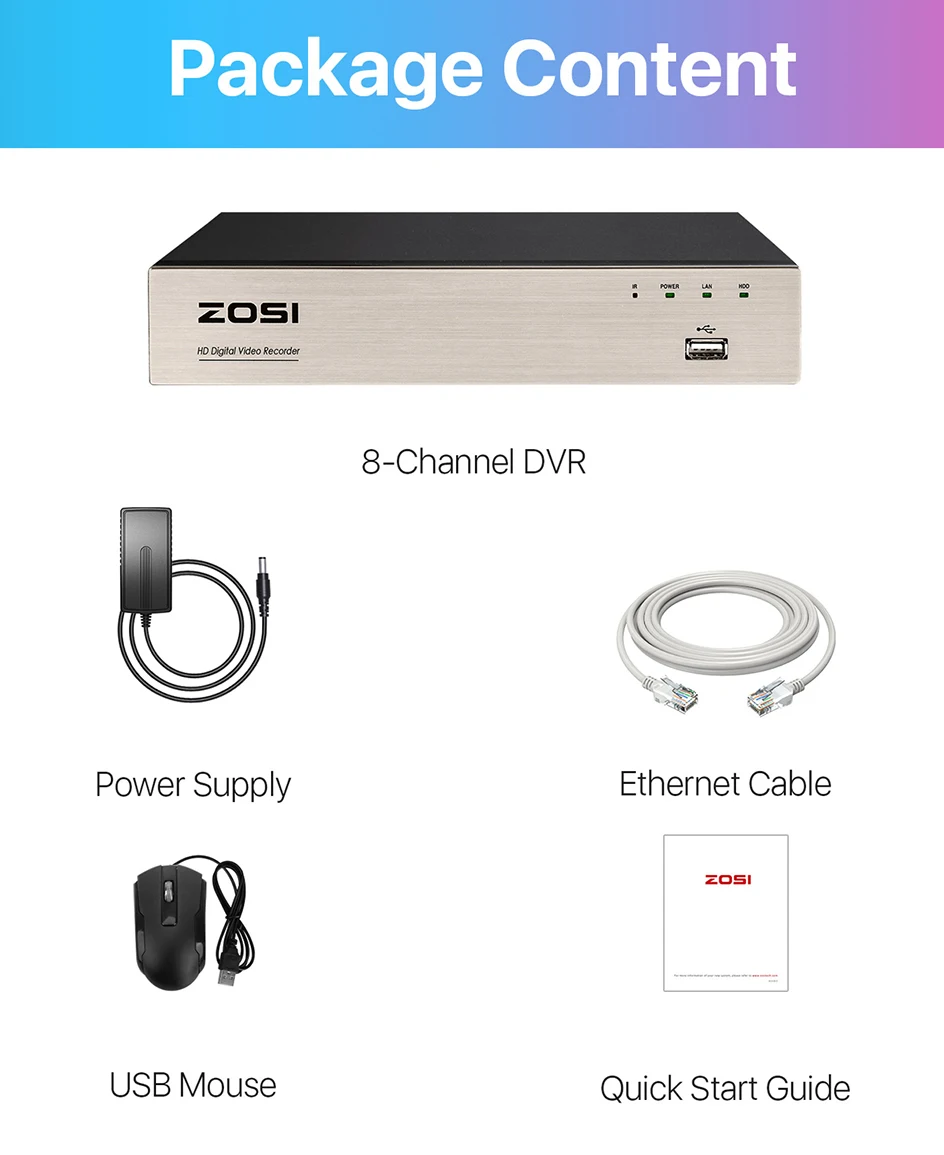

Package Contents

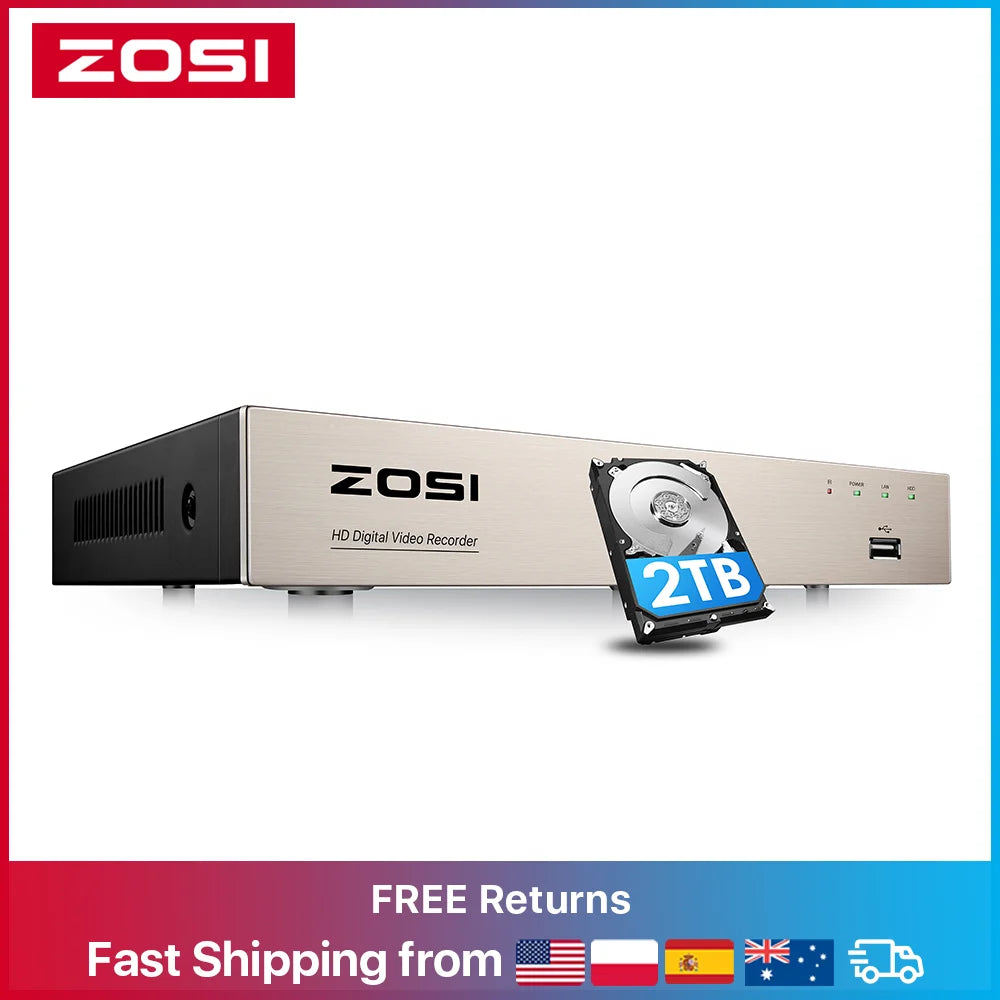

1 x 8CH 1080p Digital Video Recorder
1 x 12V/2000mA Power Supply for DVR
1 x Mouse for DVR
1 x User guide for DVR
Noted: Hard Drive is for option

Features:

1. Super Video Quality and Clarity: Supports 8-Channel 1080P Resolution
2. Multiple Trigger,Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer
3. Custom Record Modes (e.g. Manual, Scheduled, Motion Detection) and Record Intervals (1-120min)
4. USB Backup. you can transfer video files to back-up media via USB port .
5. View Your Home on Your Phone anytime anywhere.

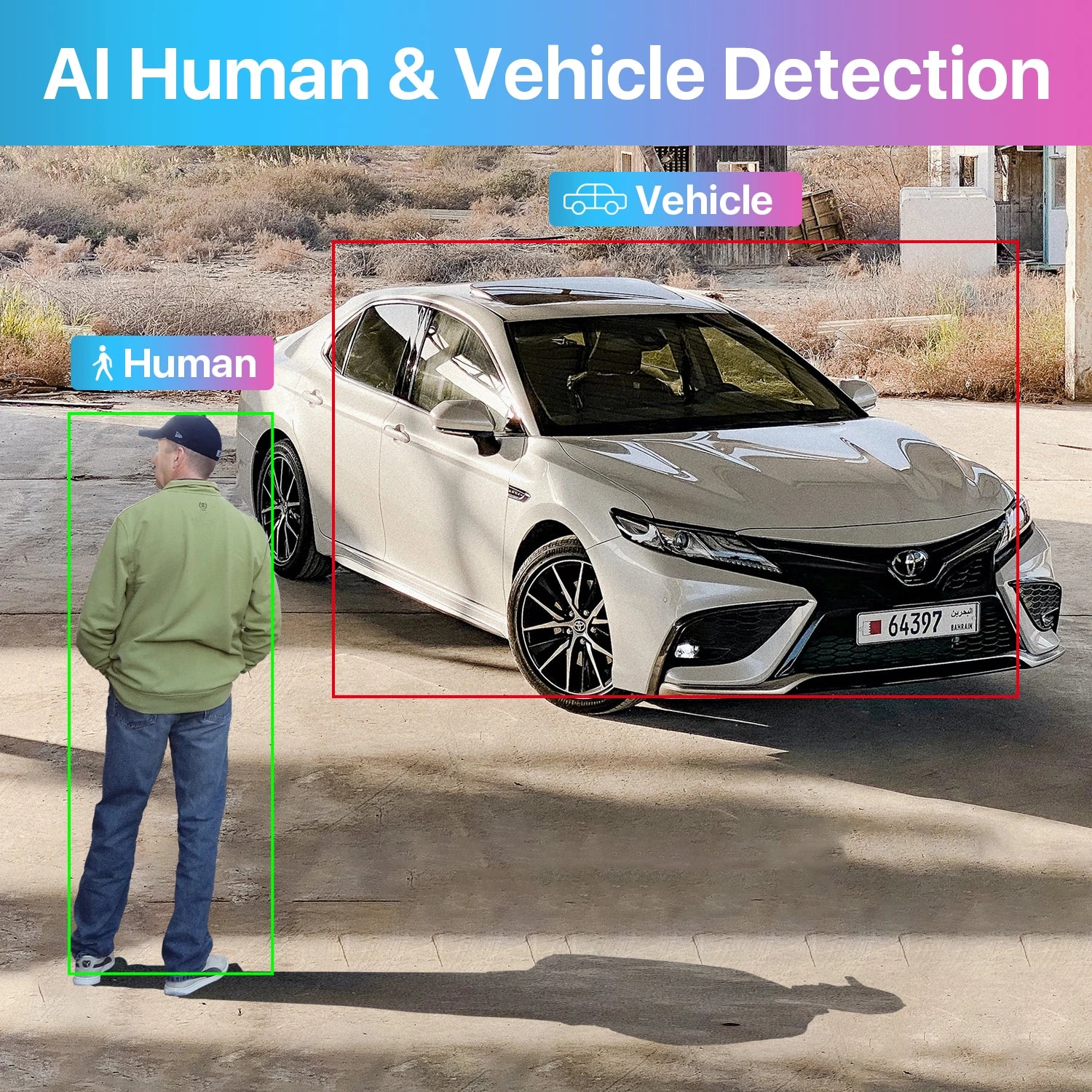

Fewer False Alarms

Compared to motion detection, person/vehicle detection can be more targeted, ignoring trrvial moves.

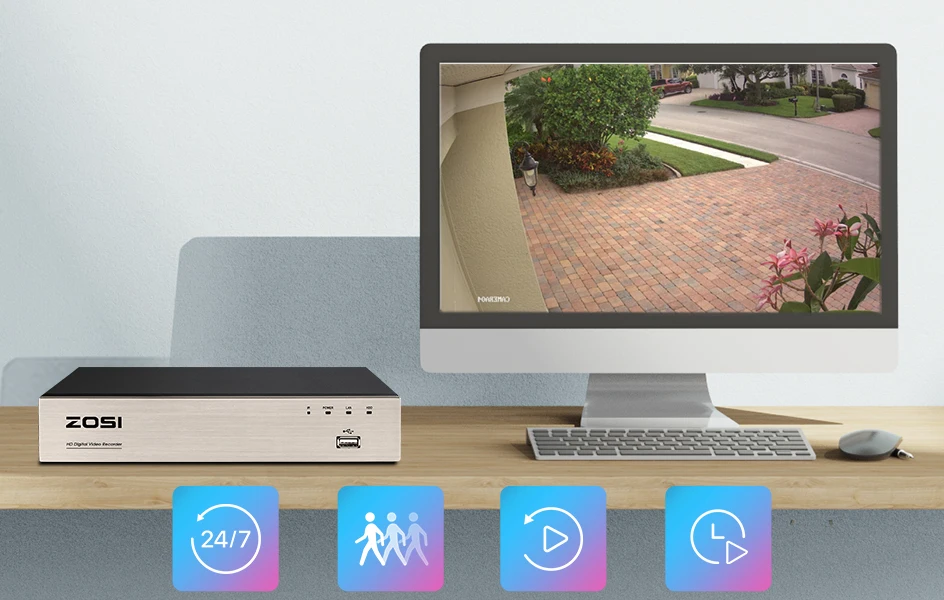

Continuous 24/7 Recording

You can install a hard drive to record videos, providing security for your property.

Optional Recording Modes

There are 4 recording modes: 24/7 recording, motion detection recording, schedule recording and recycle recording.

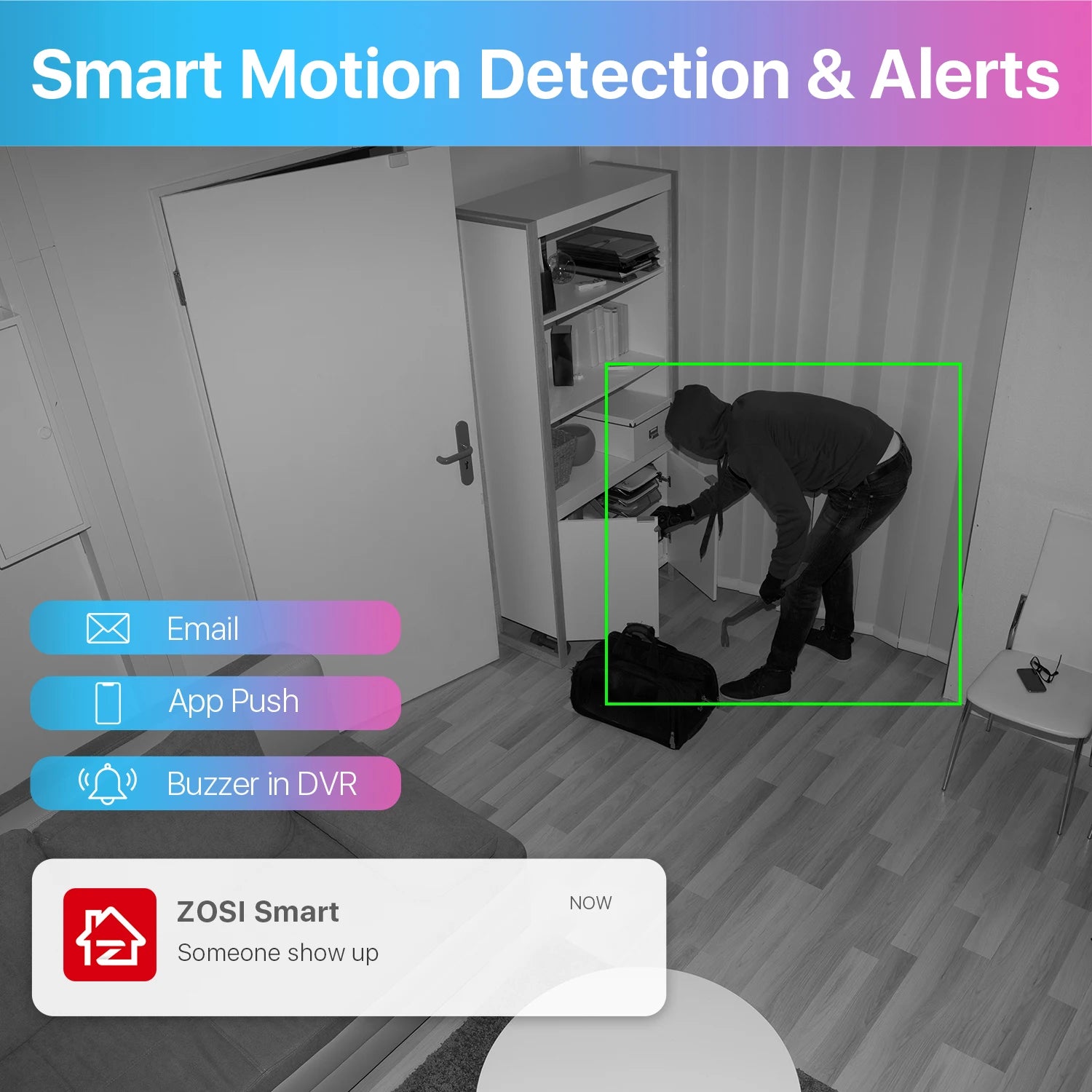

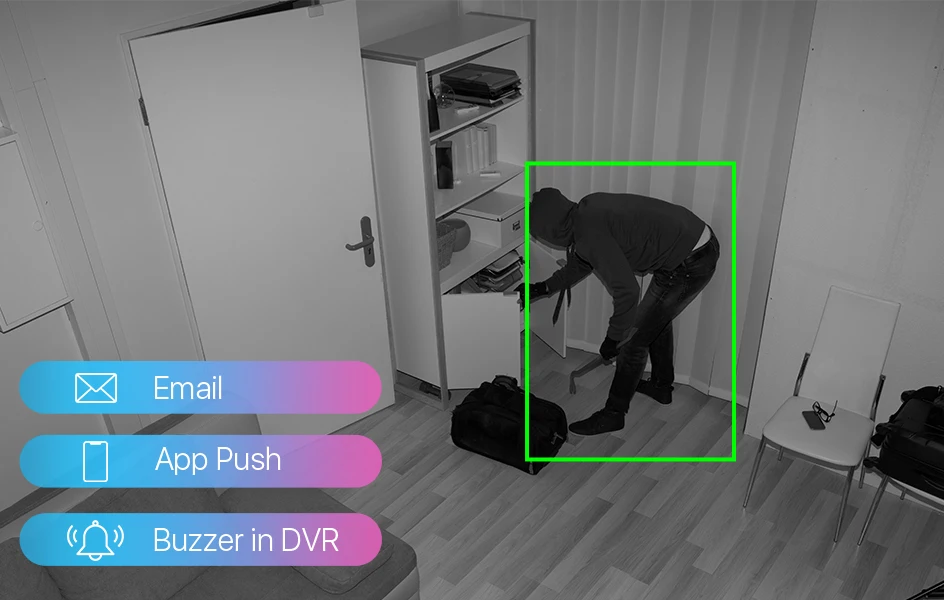

Never Miss an Event

Get email/push/buzzer alerts, and check motion events on the FTP later to keep yourself in the know.

Quickly Find and Play Back Important Moments

Find the video you want with the person/vehicle event filter, simple yet highly efficient.

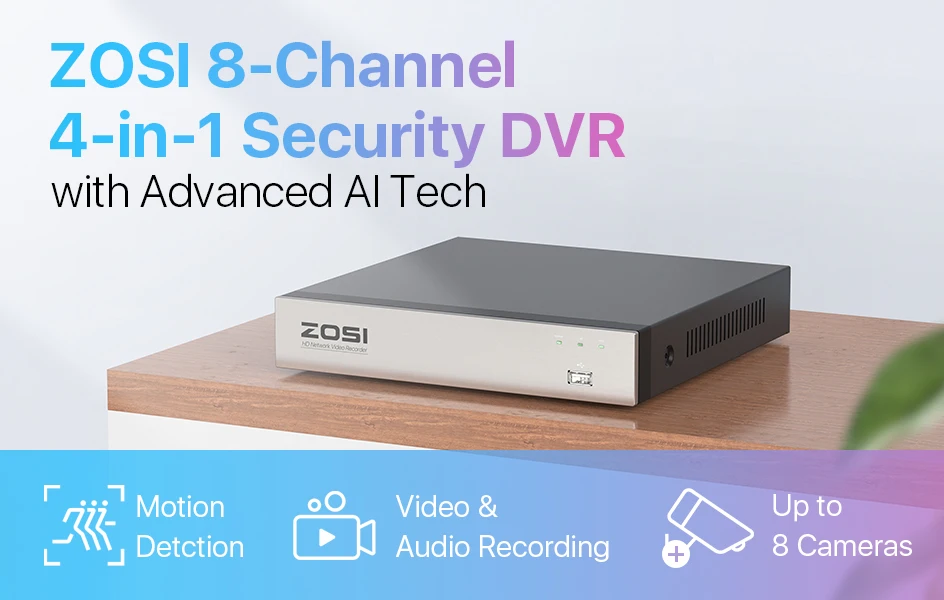

Cutting-edge 4-in-1 DVR

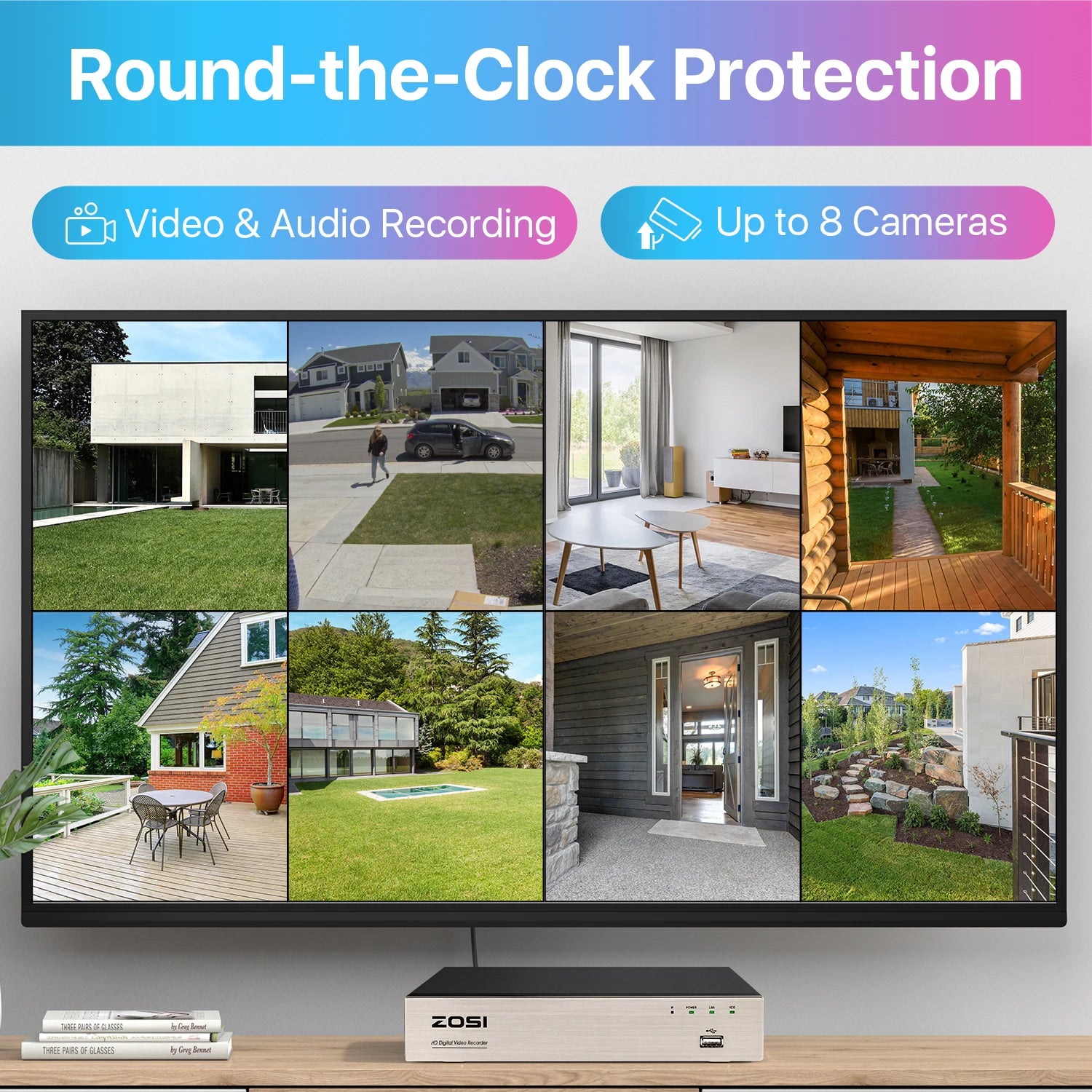

Support up to 8 HD-TVI/CVI/AHD/CVBS security cameras.

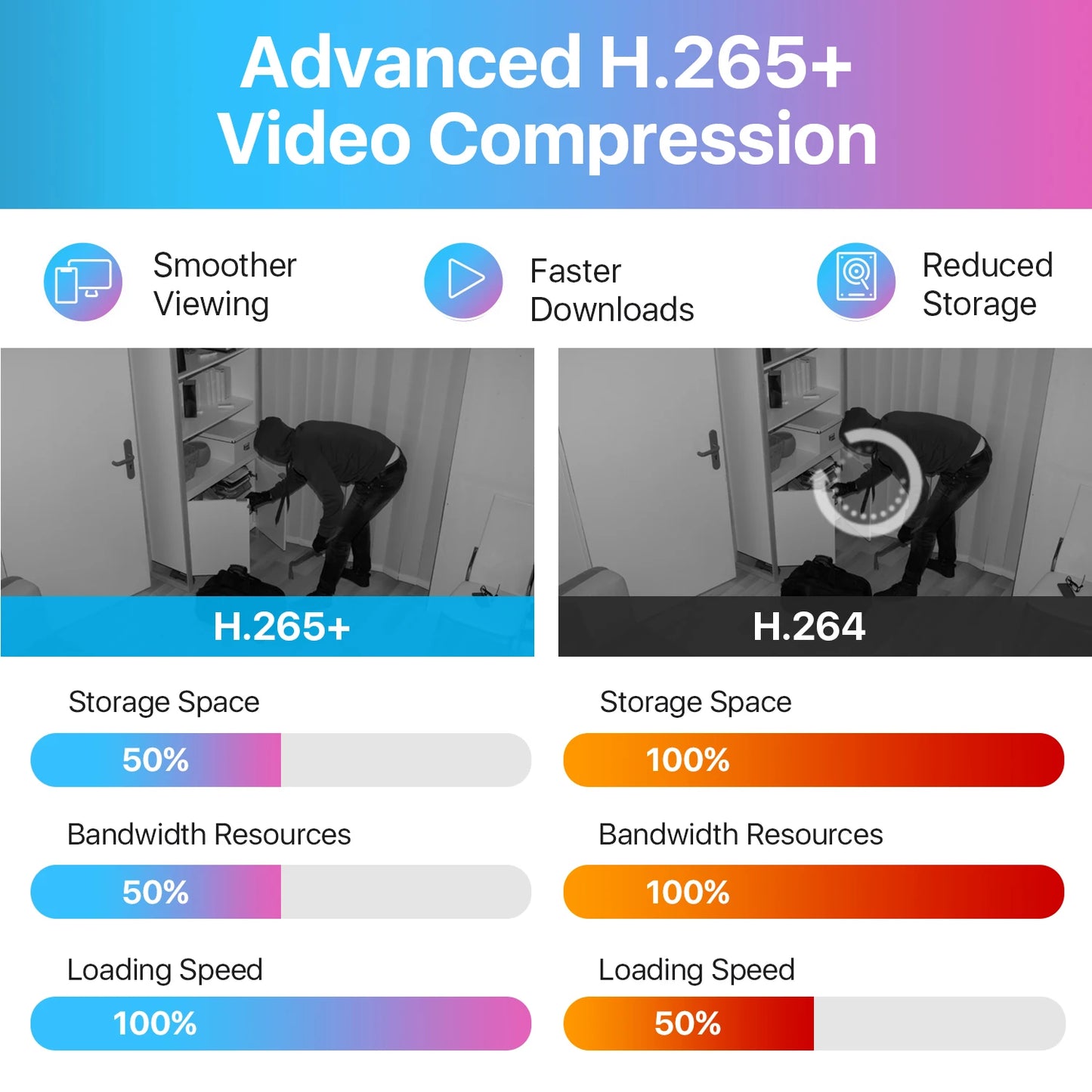

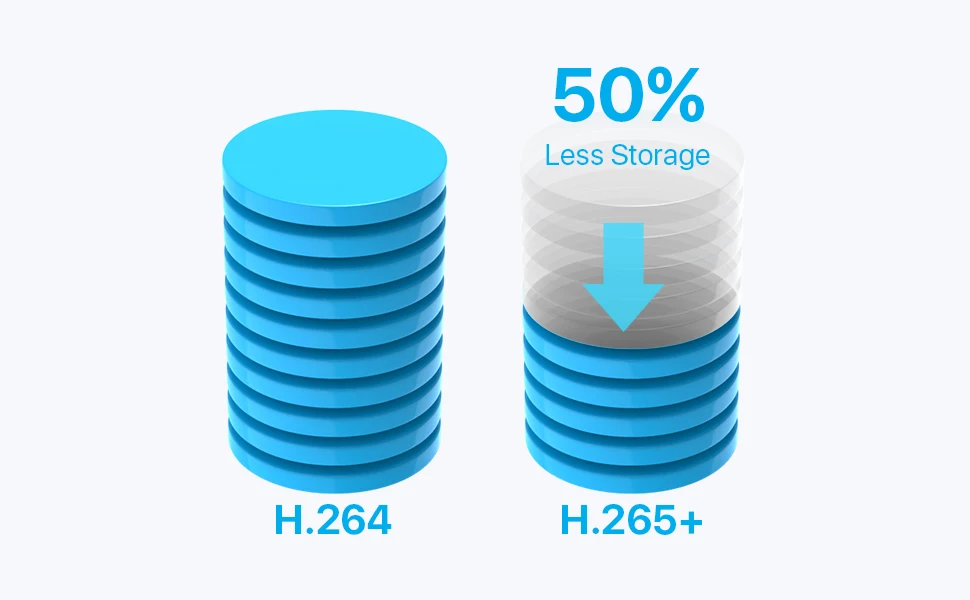

Superior H.265+ Video Format

Compared with H.264, H.265+ coding technology provides more storage and smoother video delivery.

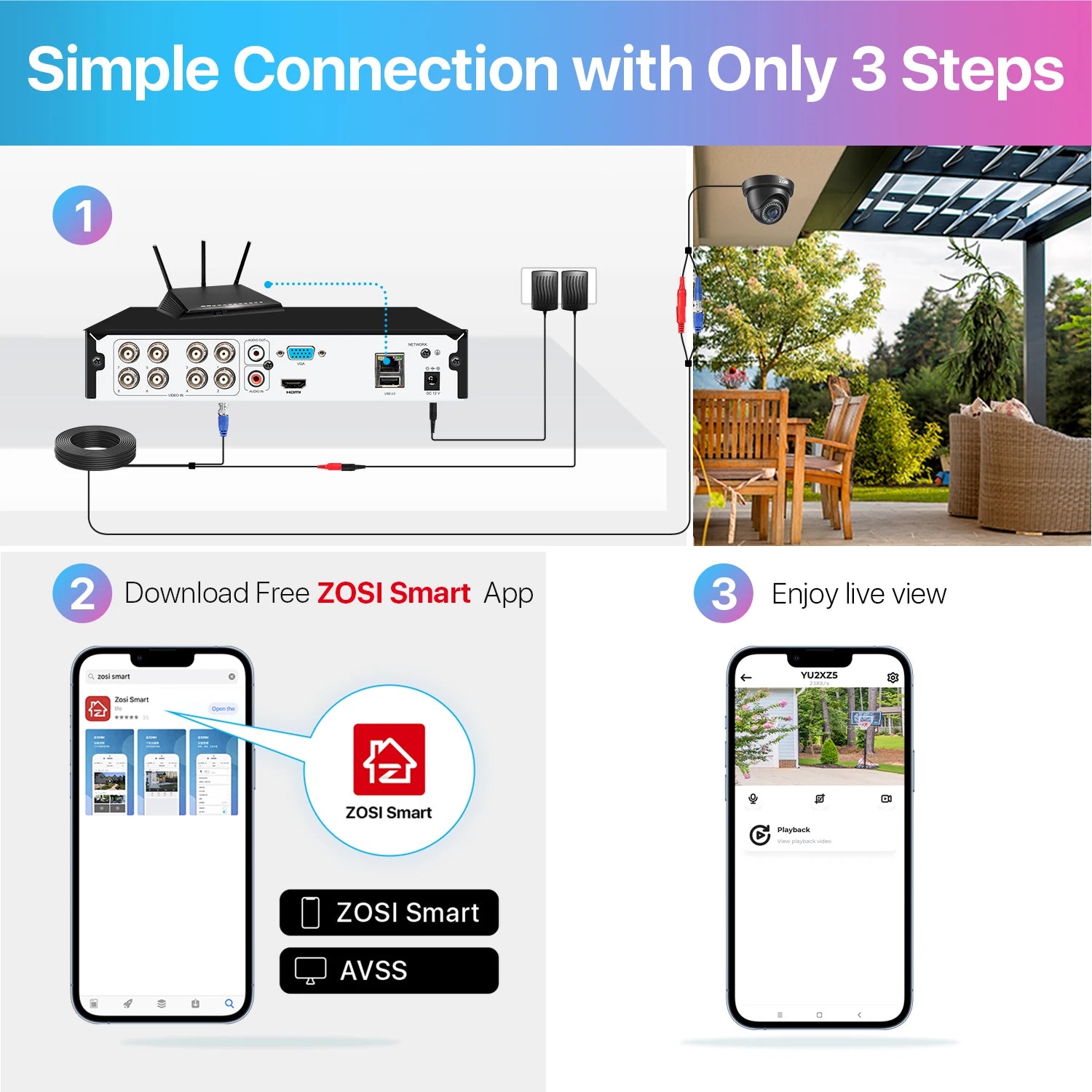

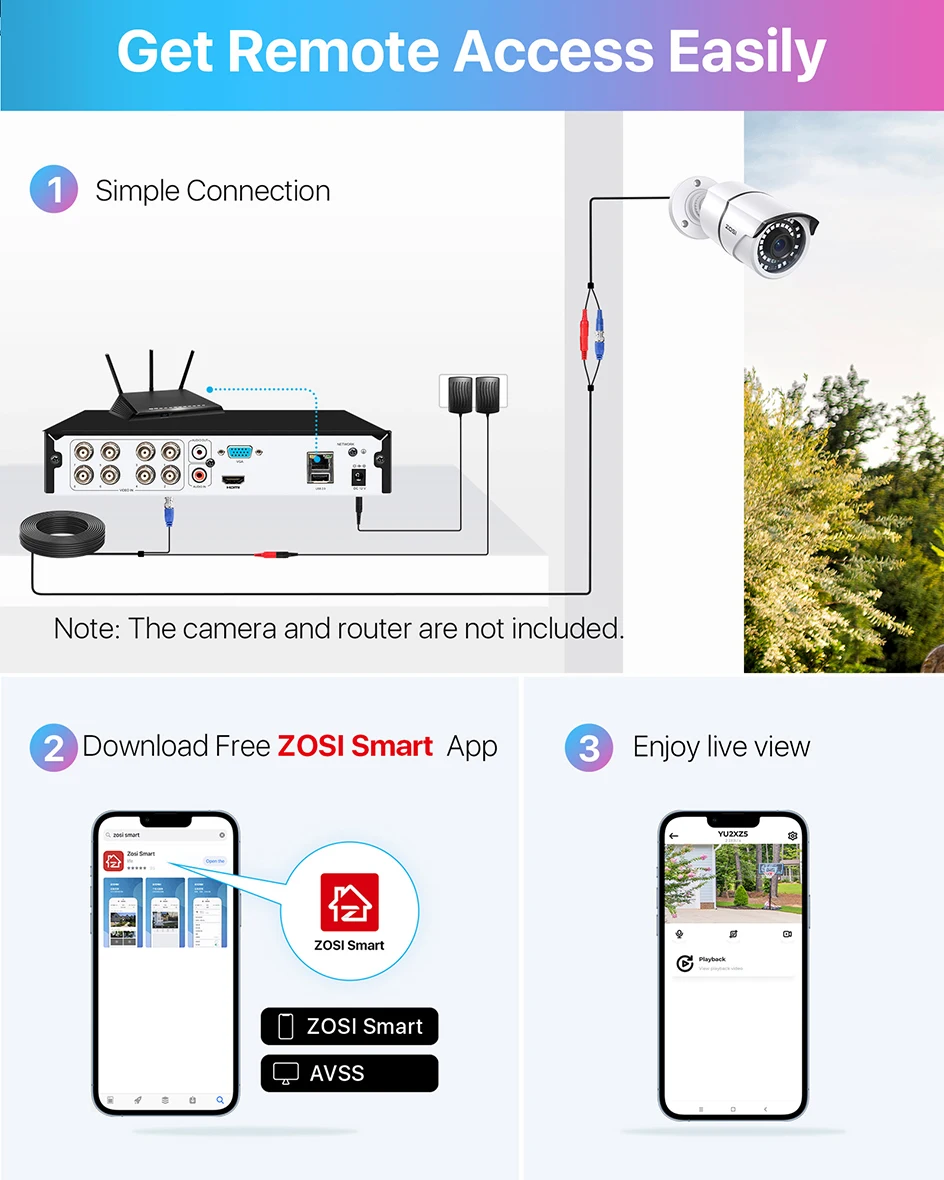

Easy Setup Even for Beginners

1. Simple Connection
2. Download Free ZOSI Smart App
3. Enjoy Live View
